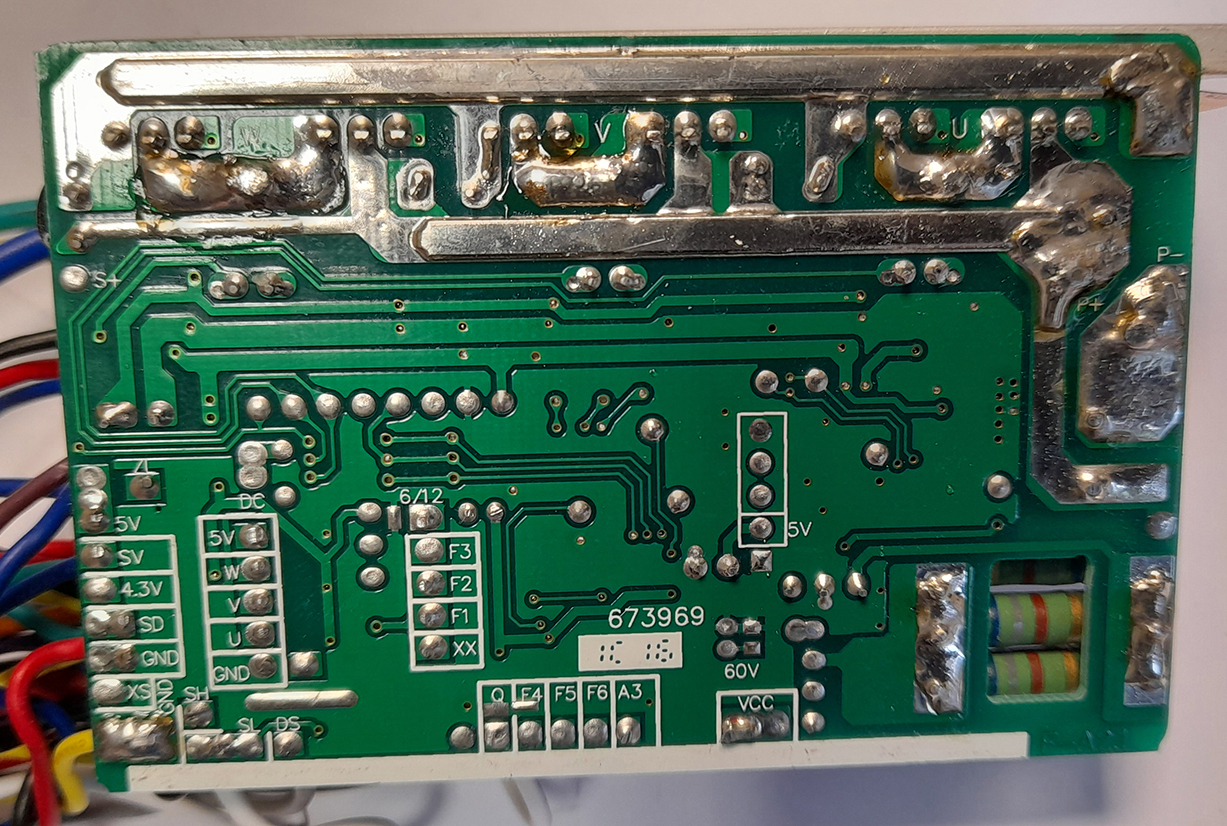

Ebike Controller 673969

Details
Category: Ebike Controllers

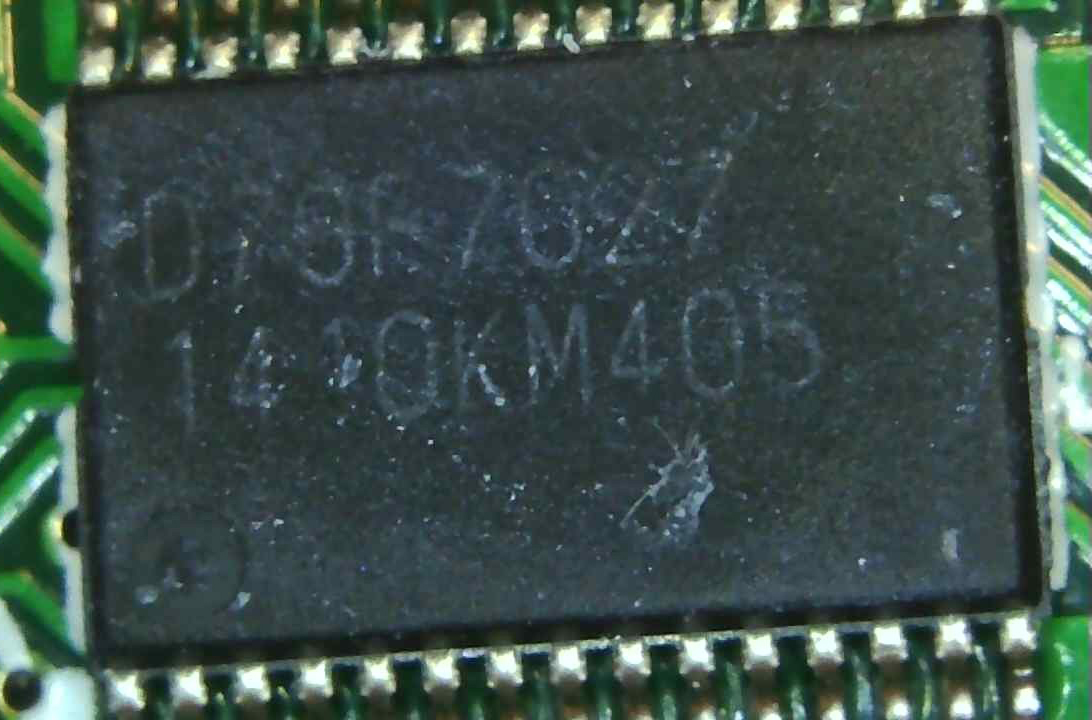

D79F7027

1410KM405

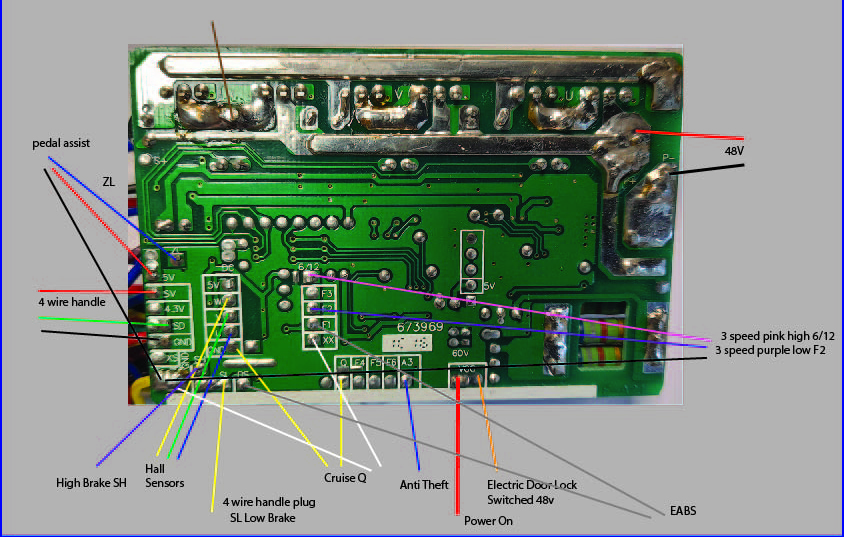

6/12 Switch 60/120 between Halls
F1 110% (short to ground)
F2 50% (Short to GND)
F3 cycle between 110%,50%,100% short to ground

ZL Pedal Assist Signal

Q Cruise
XS Choke
