- Details
- Category: Ebike Drive Units

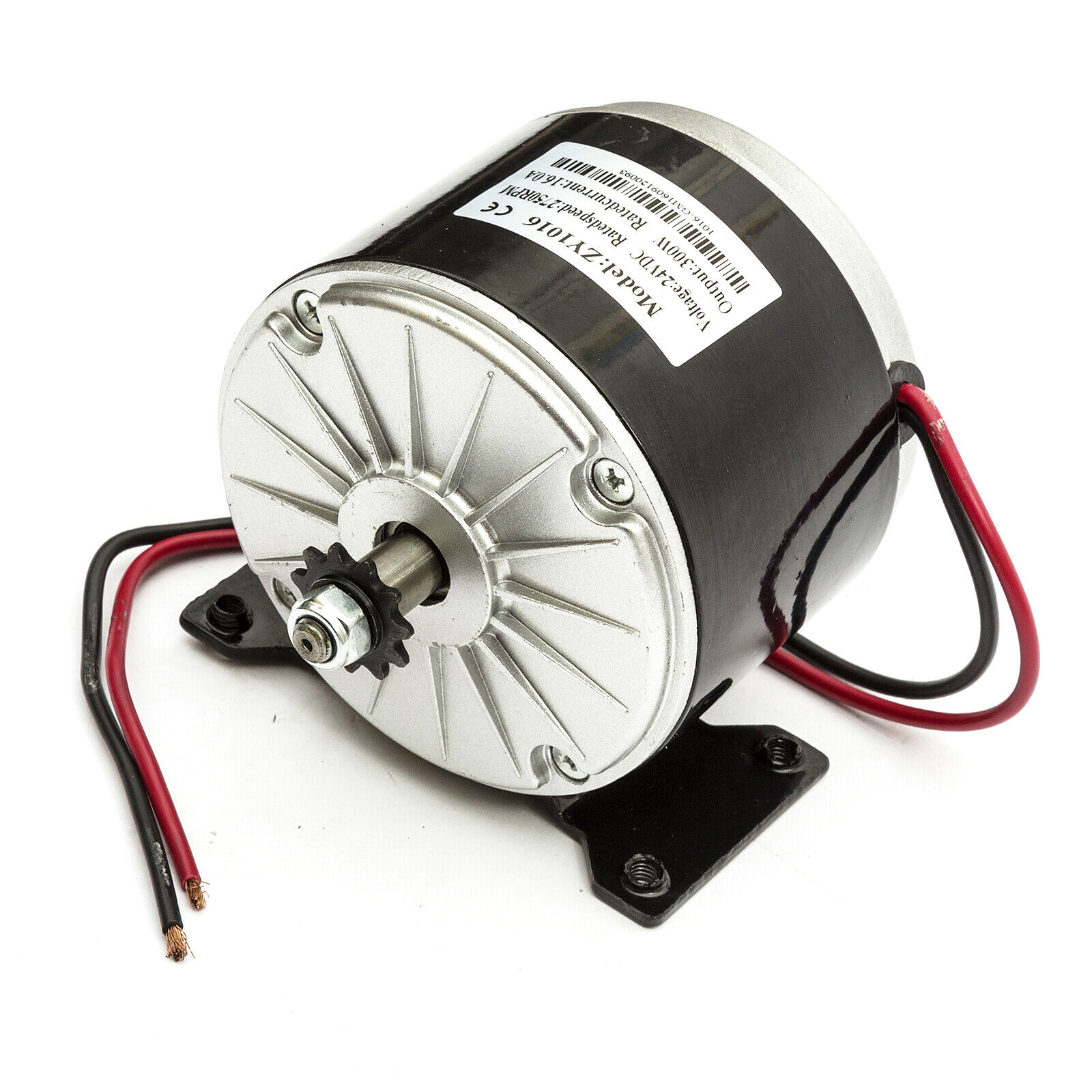

MY1016

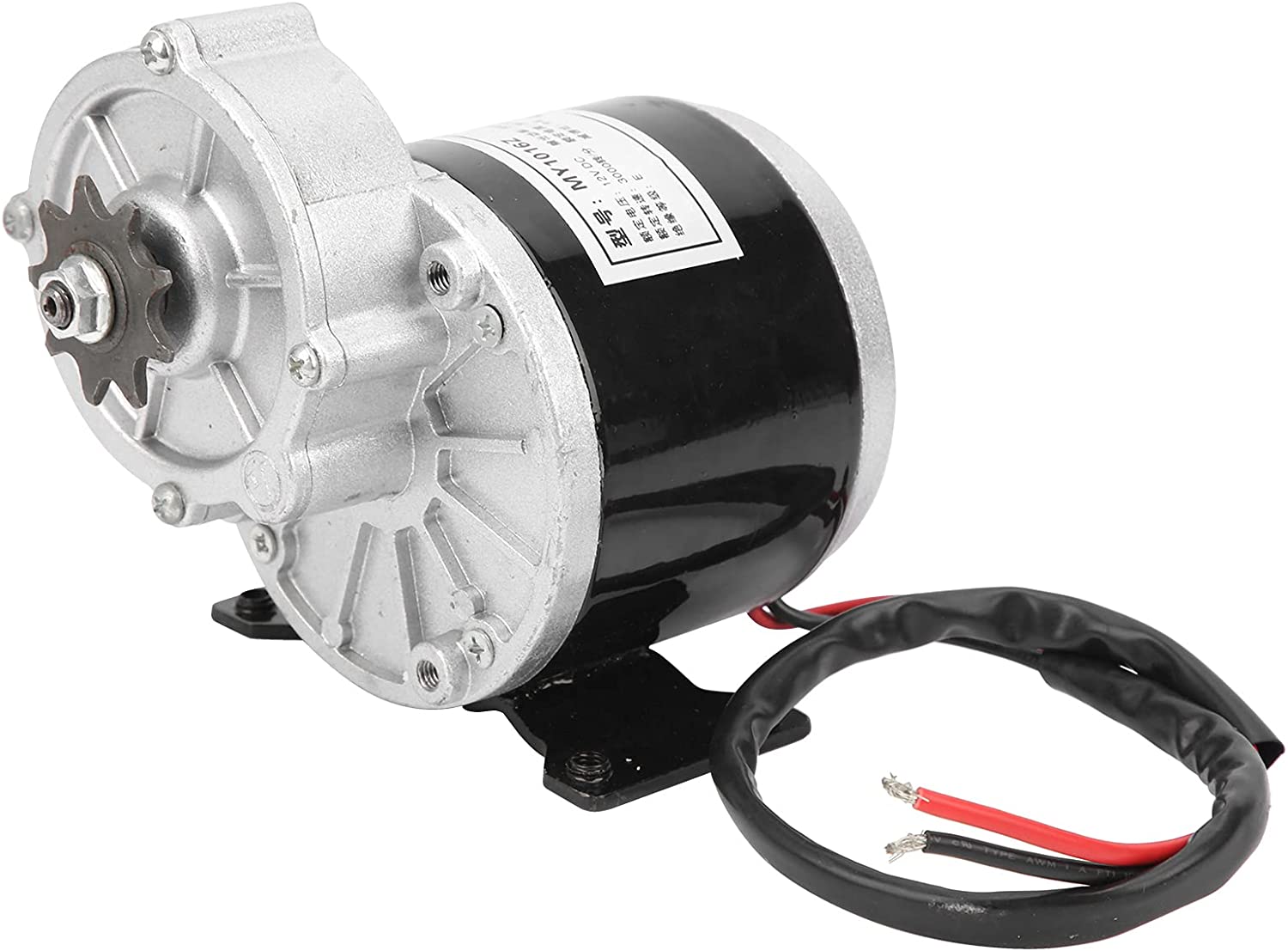

MY1016Z

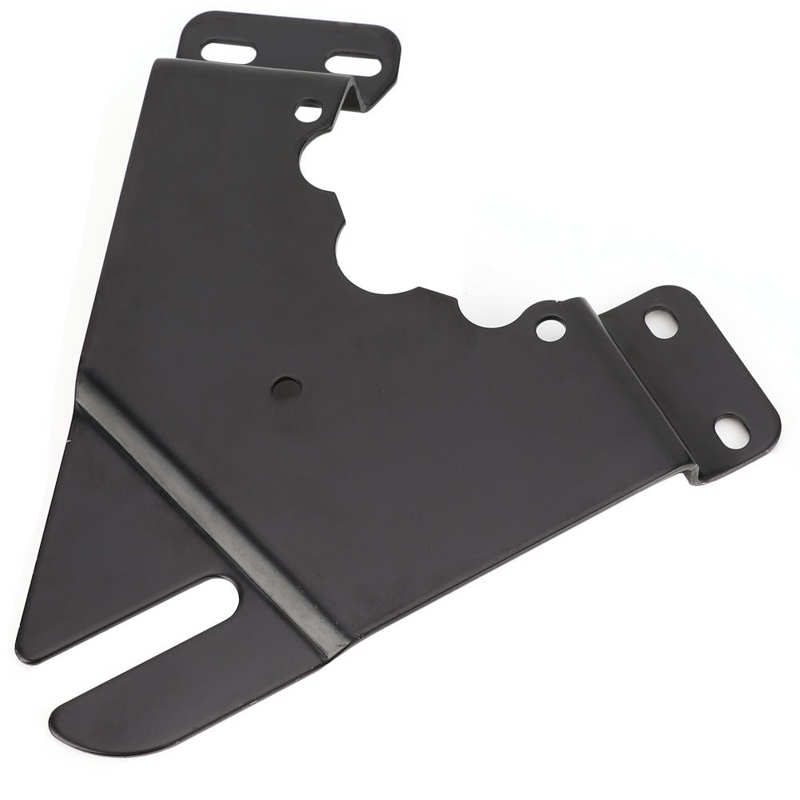

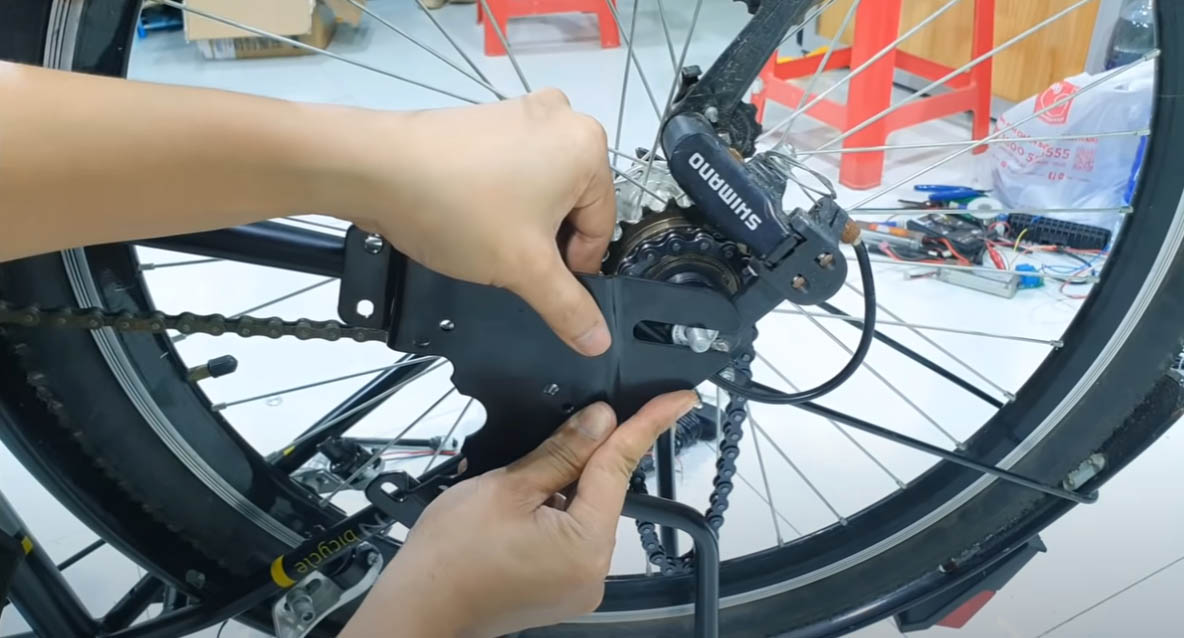

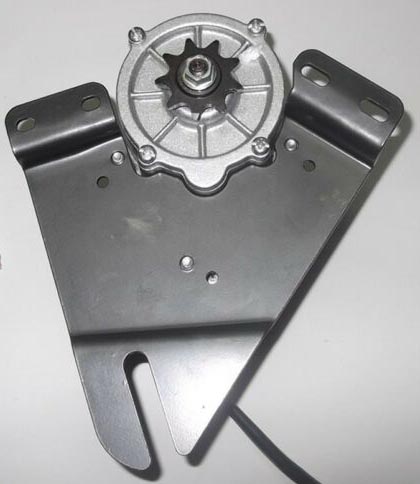

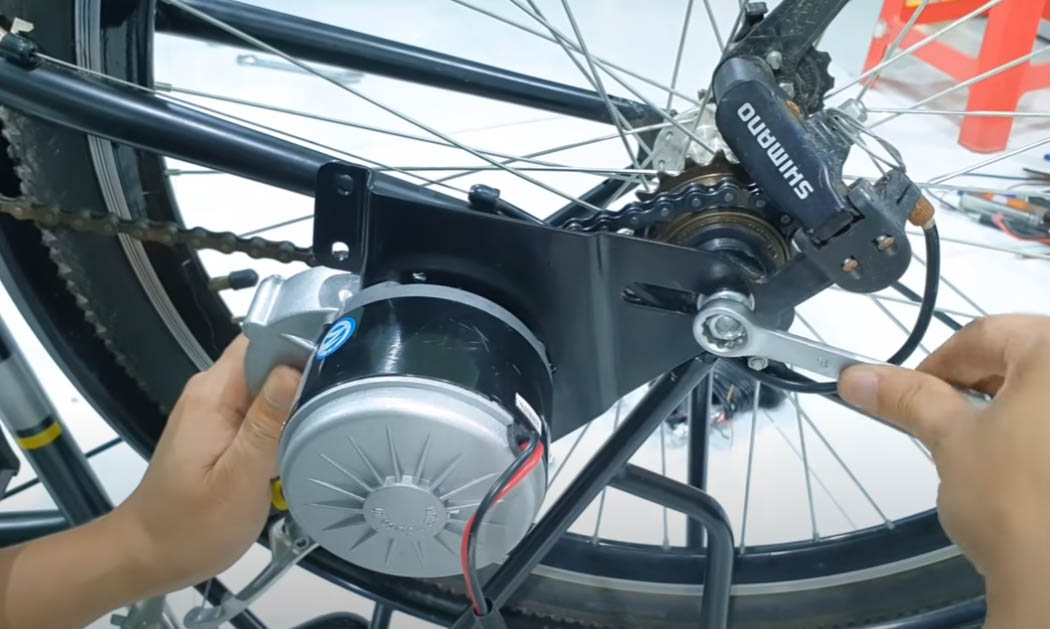

Mounting Plate
Greatest Distance Between Fixing Holes (Centre of Eye to Centre of Eye): 95 mm / 3.74 inches
Voltage: 24 v
Wattage: 300 w
Rated Current: 16 a
Rated Speed: 2750 RPM
Includes Sprocket?: Yes
Chain Size: 6mm (25H)
Number of Teeth: 11
Sprocket Thickness: 3 mm / 0.12 inches
Sprocket Diameter (Tip of Tooth to Tip of Tooth): 7 mm / 0.28 inches
Length of the Shaft on Which the Sprocket Sits: 21 mm / 0.83 inches
Wiring Length (approx.): 500 mm / 19.69 inches
Drive Type: Sprocket
Diameter of Fixing Hole(s): 5 mm / 0.2 inches
Smallest Distance Between Fixing Holes (Centre of Eye to Centre of Eye): 42 mm / 1.65 inches
Barrel Diameter: 102 mm / 4.02 inches
Barrel Length: 91 mm / 3.58 inches
Brushed or Brushless?: Brushed
Model Number: Unite ZY1016
- Details
- Category: Ebike Drive Units
Active Line
Torque 40Nm Max Cadence 100 25km/h weight 2.9kg
Active Line Plus
Torque 50Nm Max Cadence 105 25km/h weight 3.2Kg
Cargo Line
Performance Line
The Smart System Torque 75Nm
The eBike Flow app, the battery, the display, the control unit, the drive unit and the Bosch eBike ABS are fully connected in the smart system. Regular over-the-air updates keep them up to date and add new features. You can control all functions of the smart system via the eBike Flow app.
Performance Line Hub Gear System
Performance Line Derailleur system
Bosch eBike System 2 Torque 65Nm
Performance Line Hub Gear System
Performance Line Derailleur system
Performance Line Speed
Performance Line CX
