- Details
- Category: Raspberry Pi Global Shutter Camera

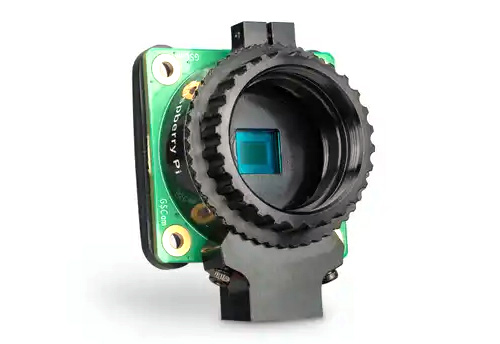

A specialised 1.6-megapixel camera that can capture rapid motion without introducing artefacts typical of rolling shutter cameras. Ideal for fast motion photography and machine vision applications.
Specification
- Form factor: 38 × 38 × 19.8mm (29.5mm adapter and dust cap)
- Weight: 34g (41g with adapter and dust cap)
- Sensor: Sony IMX296LQR-C
- Resolution: 1.58 megapixels (colour)
- Sensor size: 6.3mm sensor diagonal
- Pixel size: 3.45μm × 3.45μm
- Output: RAW10
- Back focus length of lens: Adjustable (12.5–22.4mm)
- Lens standards: CS-Mount, C-Mount (C-CS adapter included)
- IR cut filter: Integrated
- Ribbon cable length: 150mm
- Included accessories: C-CS mount adapter, screwdriver
- Tripod mount: 1/4”-20

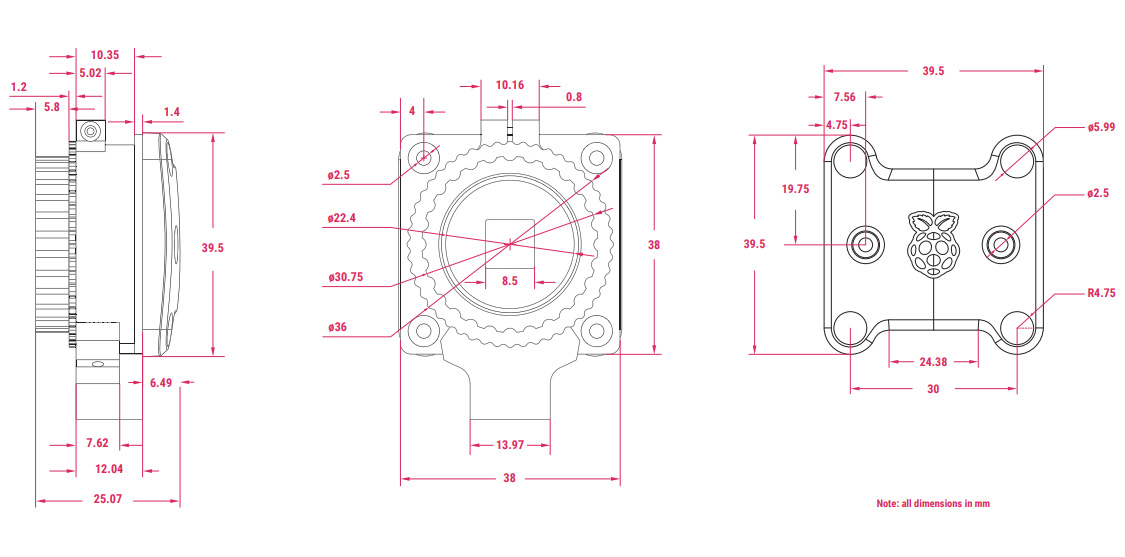

Dimensions
