Details

Category: Raspberry Pi 5

• Raspberry Pi

Specification

Processor

• 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions
• 512KB per-core L2 caches
• 2MB shared L3 cache

Features

• VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2
• Dual 4Kp60 HDMI® display output with HDR support
• 4Kp60 HEVC decoder
• LPDDR4X-4267 SDRAM (4GB and 8GB available at launch)
• Dual-band 802.11ac Wi-Fi®
• Bluetooth 5.0 / Bluetooth Low Energy (BLE)
• MicroSD card slot, with support for high-speed SDR104 mode
• 2x USB 3.0 ports, supporting simultaneous 5Gbps operation
• 2x USB 2.0 ports
• Gigabit Ethernet, with PoE+ support (requires separate Pi5-specific PoE+ HAT)
• 2x 4-lane MIPI camera/display transceivers
• PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter)
• 5V/5A DC power via USB-C, with Power Delivery support
• Raspberry Pi standard 40-pin GPIO header
• Real-time clock (RTC), powered from an external battery (available separately)
• Power button

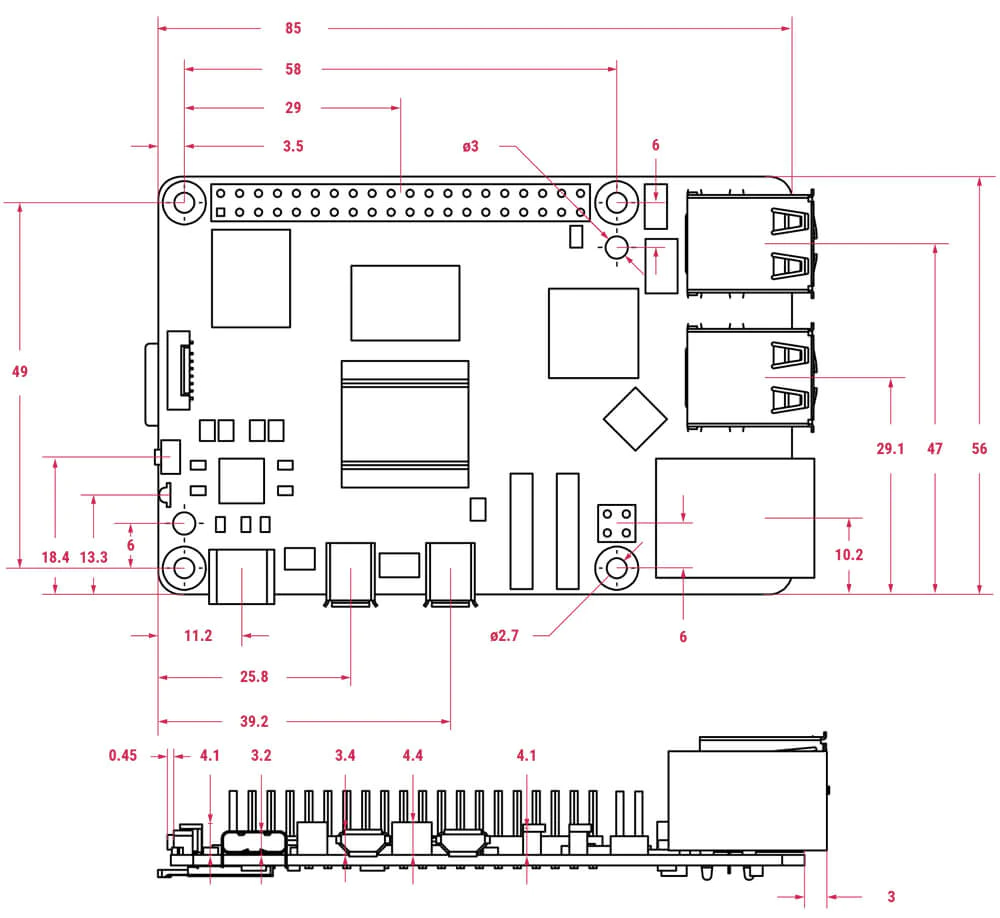

Dimensions

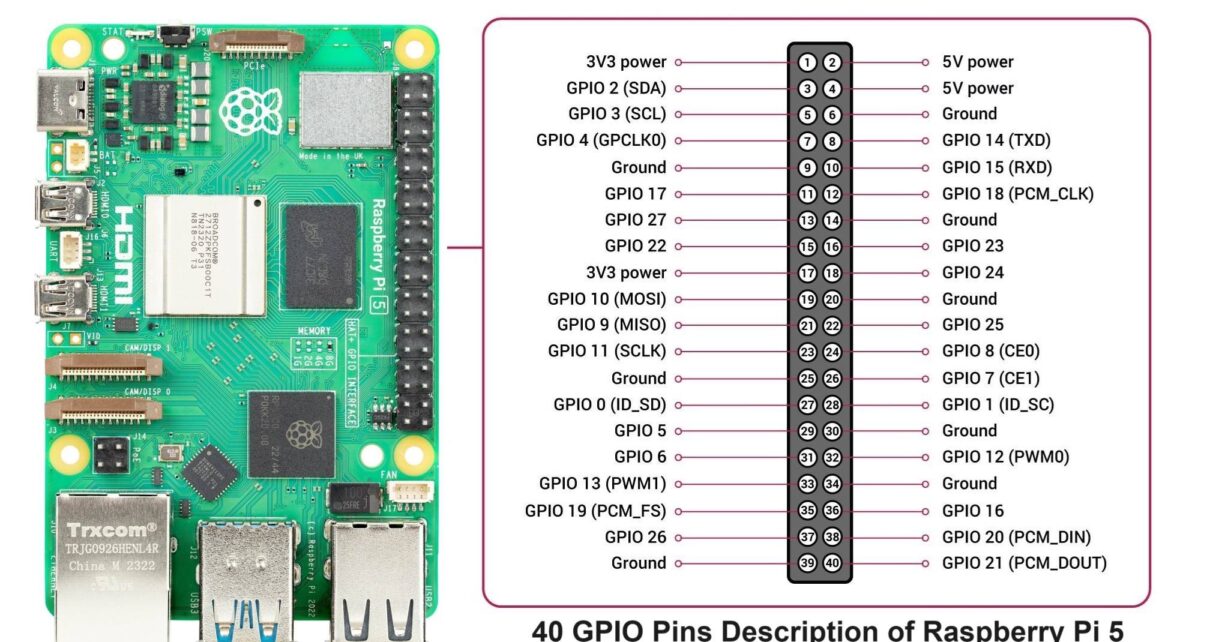

GPIO
